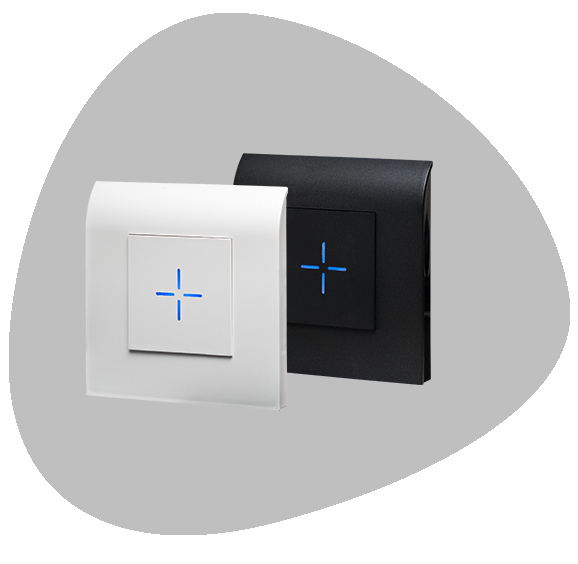

The Architect® Wal RFID card readers are well designed to be mounted in electrical switch boxes. It is well suited for all your high security access control applications, offering both discretion and user comfort.
13.56 MHz
MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® & Plus® EV1, MIFARE® DESFire®, DESFire® 256, EV1 & EV2, NFC HCE, SMART MX, CPS3, PicoPass® (CSN only), iCLASS™ cards (CSN only)*, government cards (CIMS, STITCH, AGENT)
TTL - Clock&Data protocol (ISO2), Wiegand (optional ciphered - S31), RS232 (optional ciphered - S32), RS485 (optional ciphered - S33)
5 VDC to 24 VDC / Consumption: 100 mA/12 VDC typical
Black or White - Many customization possibilities
ISO14443 types A & B, ISO18092 / CE & FCC certifications
CSN or private ID (sector/file) / Secure Protocol (Secure Plus) Read- Write (SSCP and SSCP2) / Read-Write serial number and secure OSDP™
0 - 6 cm / 0 - 2.36’’
ABS-PC
(h x w x d): WAL2 - 70 x 71 x 13 mm / 2.76’’ x 2.79’’ x 0.51’’ - WAL3 - 70 x 71 x 13 mm / 2.76’’ x 2.79’’ x 0.51’’ - Reader - 45 x 45 mm / 1.77’’ x 1.77’’
