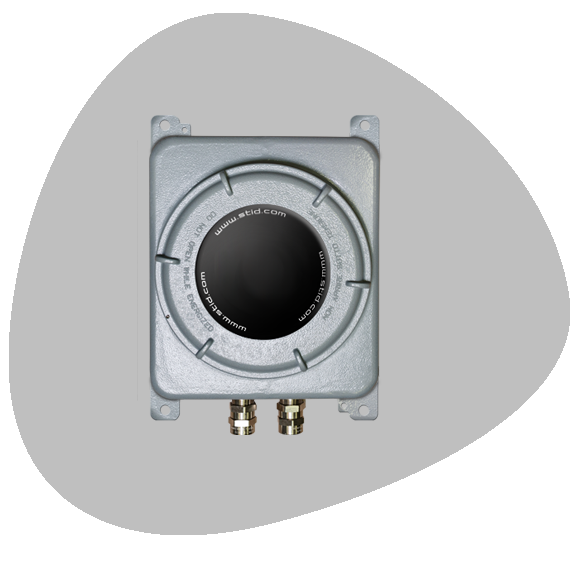

The ATX 13.56 MHz is a high security ATEX & IECEx certified proximity reader for all your access control requirements in explosive environments. STid’s range of ATX RFID products can be used to meet all your contactless identification needs in the chemical and petrochemical industries, in refineries or in nuclear power plants. The ATX reader boasts the latest security technology from STid, ensuring secure, confidential communications with full data integrity between the credential, reader and management system.
13.56 MHz
MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1 & EV2, SMART MX, NFC (HCE), PicoPass® (CSN only), iCLASS™ (CSN only*)
TTL - Data Clock (ISO2), Wiegand (optional ciphered - S31), RS232 (optional ciphered - S32) or RS485 (optional ciphered - S33)
7 - 28 VDC / Typical consumption 150 mA / 12 VDC
Grey
ISO14443 types A & B, ISO18092 / Certifications: CE & FCC
Read only: CSN or private ID (sector / file) / Secure Protocol (Secure Plus) / Pre-configured (PC1) - Read write (SSCP and SSCP2) - Read write CSN or private ID via OSDP™
0 - 4 cm / 0 - 1.57’’
Aluminum alloy & stainless steel, epoxy grey RAL 9006
(h x w x d): 310 x 270 x 175 mm / 12.2’’ x 10.6’’ x 6.8’’ - 13.5 kg / 458.5 oz
