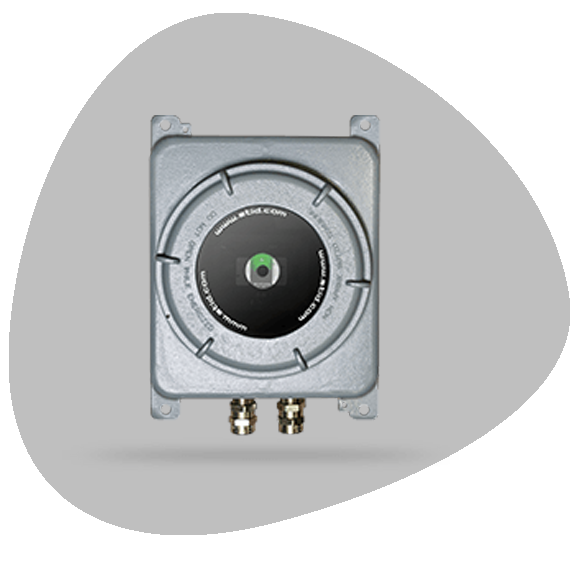

The ATX 13.56 MHz LEGIC® is a high security ATEX & IECEx certified proximity reader for all your access control requirements in explosive environments. STid’s range of ATX RFID products can be used to meet all your contactless identification needs in the chemical and petrochemical industries, in refineries or in nuclear power plants. The ATX reader boasts the latest security technology from STid, ensuring secure, confidential communications with full data integrity between the credential, reader and management system.
13.56 MHz
LEGIC® Advant & Prime, CSN of MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1 & EV2, SMART MX, NFC (HCE), PicoPass®, iCLASS™*, iCode (ISO15693), Inside chips
TTL - ISO2 protocol (Data Clock), Wiegand / RS232 / RS485
7 - 28 VDC / Typical consumption 130 mA / 12 VDC
Grey
ISO14443A, ISO15693, LEGIC® RF / Certification: CE
Read only: CSN or private ID (sector / file) / Read write: SSCP
0 - 4 cm / 0 - 1.57’’
Aluminum alloy & stainless steel, epoxy grey RAL 9006
(h x w x d): 310 x 270 x 175 mm / 12.2’’ x 10.6’’ x 6.8’’ - 13.5 kg / 458.5 oz
