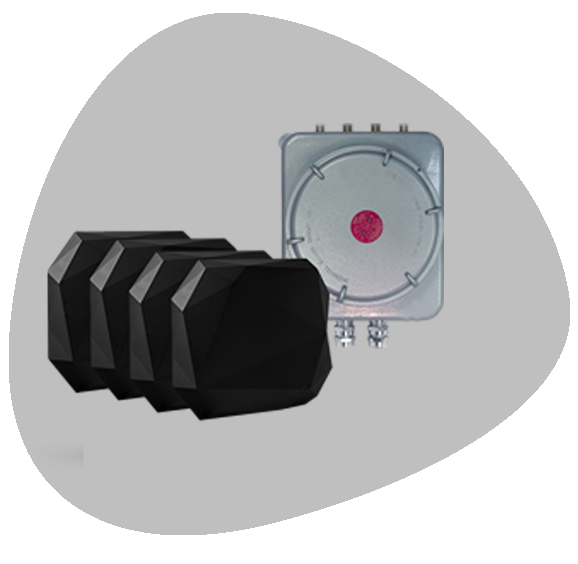

The ATX 13.56 MHz LEGIC® is a high security ATEX & IECEx certified proximity reader for all your access control requirements in explosive environments. STid’s range of ATX RFID products can be used to meet all your contactless identification needs in the chemical and petrochemical industries, in refineries or in nuclear power plants. The ATX reader boasts the latest security technology from STid, ensuring secure, confidential communications with full data integrity between the credential, reader and management system.
UHF
EPC1 Gen2
TTL - ISO2 (Data Clock) or Wiegand / RS232 / RS485 / TCP-IP
9 - 36 VDC / Typical consumption 2.5 mA / 12 VDC
Grey
ISO18000-63 / EPC1 Gen 2 / Versions: 865 - 868 MHz: 866 MHz ETSI (Europe), Morocco (regulation n°ANRT/DG/n°7-10), etc. / 902 - 928 MHz: 915 MHz FCC Part 15 (USA), Australia, New Zealand, etc. / Certifications: CE, FCC & UL / ATEX (EN60079) & IECEx
Read Only EPC or encrypted and signed EPC / Read Write via SSCP / Read Write via OSDP™ v1 & v2 (SCP)
0 - 10 m / 0 - 32.8 ft
Aluminum alloy & stainless steel, epoxy grey RAL 9006
(h x w x d): 310 x 270 x 175 mm / 12.2’’ x 10.6’’ x 6.8’’ - 13.5 kg / 458.5 oz
