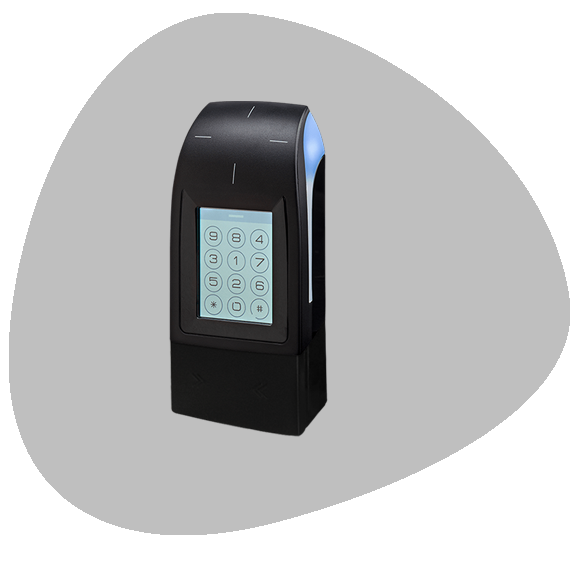

The Architect® Blue Hybrid touchscreen reader facilitates your migrations to secure and mobile technologies. It combines three identification technologies 125 kHz, 13.56 MHz and Bluetooth® with a customizable color touchscreen.
125 kHz + 13.56 MHz + Bluetooth®
EM42xx / EM4x50, Crosspoint®, Nedap®, Format Wiegand 26, 34, 35 and 37 bits / MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, MIFARE® DESFire® 256, EV1, EV2 & EV3, PicoPass® (CSN only), iCLASS™ (CSN only*) / STid Mobile ID® (NFC HCE and Bluetooth® virtual card), Orange Pack ID
TTL Data Clock (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) / Compatible with EasySecure interface
7 VDC to 28 VDC / consumption 250 mA / 12 VDC max
black
ISO14443 types A & B, ISO18092
CSN read-only, secure (file, sector) and secure protocol (Secure Plus) / Controlled by protocol (read/write)
Up to 6 cm / 2.36’’ with a 125 kHz card - Up to 4 cm / 1.57’’ with a MIFARE DESFire® EV2 card - Up to 20 m / 65.6 ft with a Bluetooth® smartphone (adjustable distances on each reader)
ABS-PC UL-V0 (black)
(h x w x d): 156.4 x 80 x 30.5 mm / 6.14’’ x 3.15’’ x 1.2’’ (general tolerance following ISO NFT 58-000 standard)
