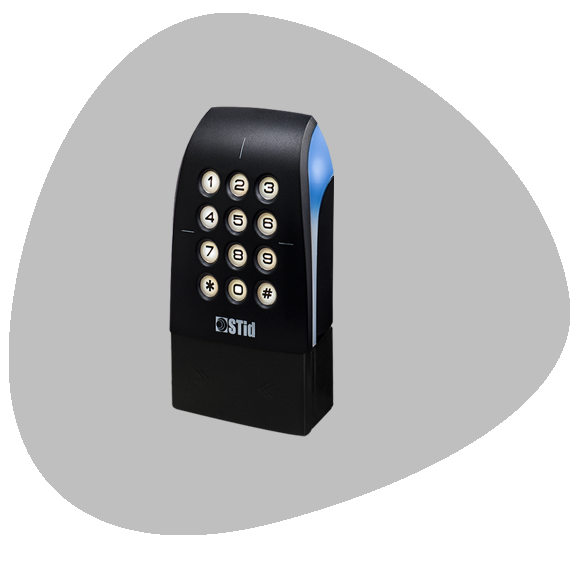

STid has designed the Architect® Blue Hybrid 125 kHz + 13.56 MHz + Bluetooth® vandal-proof keypad reader for access control - perfect blend of three identification technologies - to facilitate your migrations to advanced security levels.
125 kHz +13.56 MHz + Bluetooth®
EM42xx / EM4x50 / Format Wiegand 26, 34, 35 and 37 bits / Nedap / Crosspoint MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® & Plus® EV1, MIFARE® DESFire® 256, EV1 & EV2, NFC (HCE), SMART MX, CPS3, PicoPass® (CSN only), iCLASS™ (CSN only)* STid Mobile ID® (virtual card), Orange Pack ID
TTL protocol Data Clock (ISO2) or Wiegand (ciphered mode Sx1) / RS485 (ciphered mode Sx3) with secure communication protocols SSCP & SSCP2 ; OSDP™ V1 (plain communication) & V2 (SCP secure communication) Compatible with EasySecure interface
7 VDC to 28 VDC / Power requirement 190 mA / 12 VDC
black or white - Many shell customization possibilities for 13.56 MHz reader
ISO14443A types A & B, ISO18092
Read only: CSN, private ID (sector/file) or Secure Protocol (Secure Plus) / Secure Read Write
Up to 6 cm / 2.36’’ with a 125 kHz card / Up to 6 cm / 2.36’’ with a MIFARE DESFire® EV2 card Up to 20 m / 65.6 ft with a Bluetooth® smartphone (adjustable distances on each reader)
ABS-PC UL-V0 (black)
(h x w x d): 145.64 x 79.93 x 25.7 mm / 5.71’’ x 3.11’’ x 0.98’’ (general tolerance following ISO NFT 58-000 standard)
