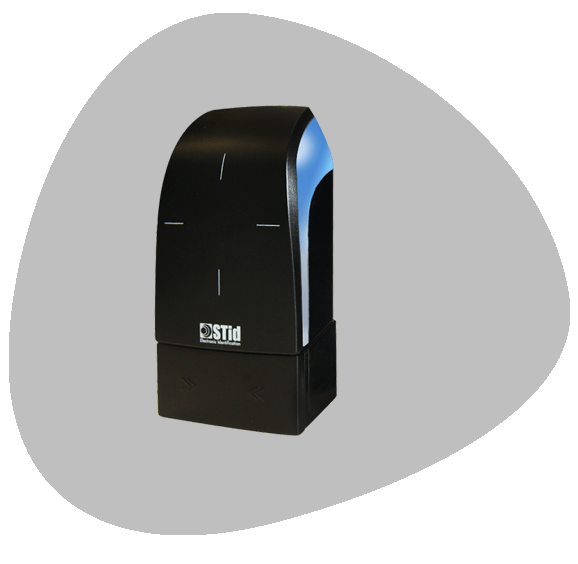

The Architect® Hybrid 125 kHz + 13.56 MHz access control reader (ARC-I) optimize management of your technological migrations. Perfect blend of two identification technologies, it's designed to facilitate your migrations to advanced security levels.
125 kHz + 13.56 MHz
EM42xx / EM4x50 / Format Wiegand 26, 34, 35 and 37 bits / Nedap / Crosspoint. MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1 & EV2, NFC (HCE), SMART MX, CPS3, PicoPass® (CSN only), iCLASS™ (CSN only)*, CIMS Ministry of Defense card “Cartes Agents”
2 variants: - TTL/RS232 protocol: Data Clock (ISO2), Wiegand (ciphered mode S31) or RS232 (ciphered mode S32) - TTL/RS485 protocol: Data Clock (ISO2), Wiegand (ciphered mode S31) or RS485 (ciphered mode S33). Compatible with EasySecure interface
7 VDC to 28 VDC / Consommation 160 mA / 12 VDC max
black or white - Many shell customization possibilities
13.56 MHz: ISO14443 types A & B, ISO18092
Read only: CSN or private ID (sector/file) / Secure Protocol (Secure Plus) / Serial number and secure OSDP™ V1 (plain communication) & V2 (SCP secure communication) - Secure Read Write (SSCP & SSCP2)
Up to 8 cm / 3.15’’ with a 125 kHz card / Up to 8 cm / 3.15’’ with a MIFARE DESFire® EV2 card
ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
(h x w x d): 145.64 x 79.93 x 25.7 mm / 5.71’’ x 3.11’’ x 0.98’’
