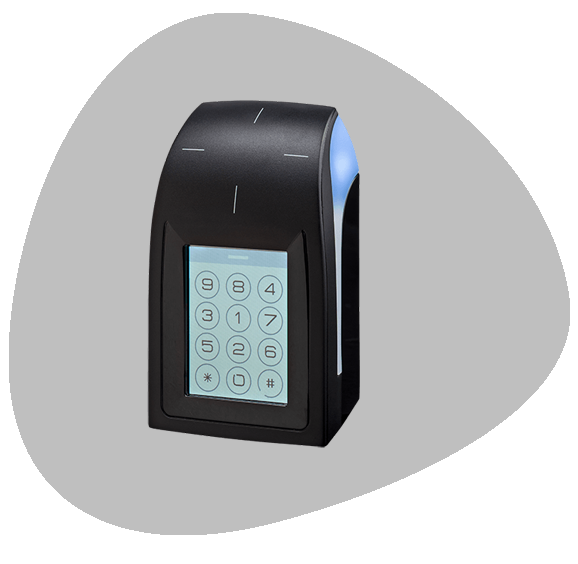

By developing the Architect® innovative readers, STid has created the perfect blend of high security and scalability. The ARC-C is a secure reader combining RFID technologies with a color touch screen to display a keypad or additional information.
13.56 MHz
MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire® 256, EV1, EV2 & EV3, NFC HCE, SMART MX, CPS3, PicoPass®, iCLASS™ cards (CSN only)*, CIMS Ministry of Defense card “Cartes Agents”
TTL Data Clock (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) and RS232 output with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
7 VDC to 28 VDC / Consumption: 200 mA/12 VDC max
Black or White - Other possibilities for shell customization
ISO14443 types A & B, ISO18092 / Certifications: CE, FCC, IC & UL
CSN read-only, secure (file, sector) and secure protocol (Secure Plus) / Controlled by protocol (read/write)
Up to 4 cm / 1.57’’ with a MIFARE® DESFire® EV2 card
ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
(h x w x d): 128 x 80 x 30.5 mm / 5.04’’ x 3.15’’ x 1.2’’
