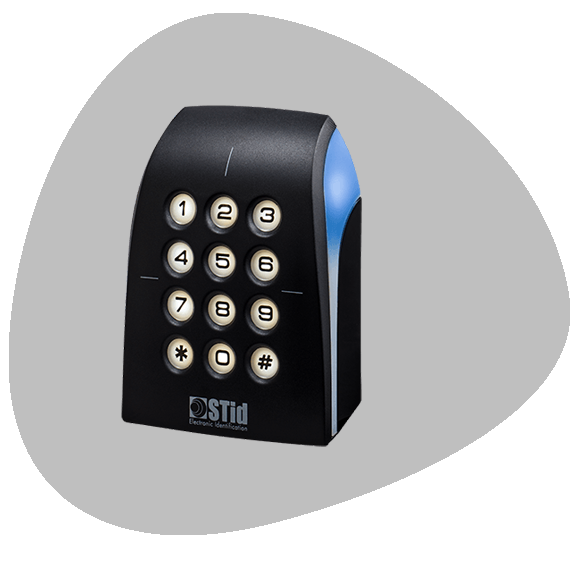

By developing the Architect® innovative readers, STid has created the perfect blend of high security and scalability. The ARC-B is a secure RFID card reader with capacitive keypad.
13.56 MHz
MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®, MIFARE® DESFire®, MIFARE® DESFire® EV1 & EV2, NFC HCE, SMART MX, CPS3, PicoPass®, iCLASS™ cards (CSN only)*, CIMS Ministry of Defense card “Cartes Agents”
TTL Data Clock (ISO2) or Wiegand output (encrypted option - S31) / RS232 output / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
7 VDC to 28 VDC / Consumption: 160 mA/12 VDC Max
Black or White – Many shell customization possibilities
ISO14443 types A & B, ISO18092 / Certifications : CE & FCC
CSN, pre-configured (PC2 - Easyline), secure (file, sector) read-only and secure protocol (Secure Plus) / Secure read-write
0 - 6 cm
ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
(h x w x d): 106,64 x 80 x 25,70 mm
