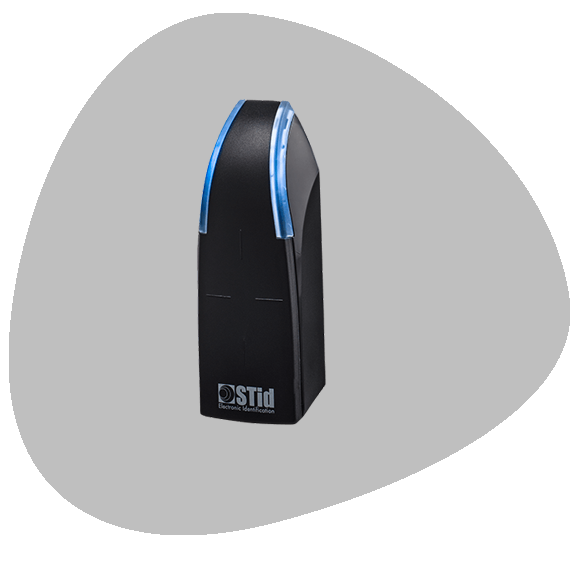

The Architect® One is the most compact secure RFID MIFARE® DESFire® EV2 & EV3 card reader ever. This mullion reader is well designed for installation in small spaces: narrow flushbox or door frame mounting
13.56 MHz
MIFARE® Ultralight® & Ultralight® C, Classic & Classic EV1, Plus® (S/X) & Plus® EV1, DESFire® 256, EV1, EV2 & EV3, PicoPass® (CSN only), iCLASS™ (CSN only*)
TTL Clock&Data (ISO2) or Wiegand output (encrypted option - S31) / RS485 output (encrypted option - S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
9 - 15 VDC / Consumption : 130 mA/12 VDC max
Black or White - Many cover customization options
ISO14443 types A & B, ISO18092 / Certifications: CE, FCC, IC & UL
CSN, pre-configured (PC2 - Easyline), secure (file, sector) read-only and secure protocol (Secure Plus) / Secure read-write
0 - 6 cm
ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
(h x w x d): 110 x 42 x 22 mm / 4.33’’ x 1.65’’ x 0.86’’
