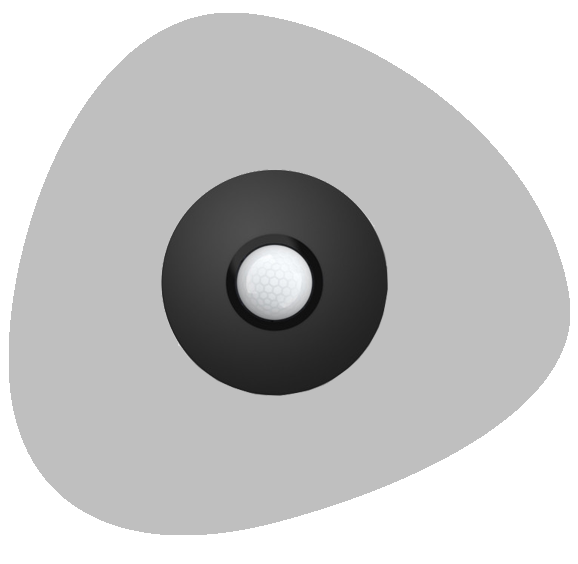

PRESENCE SENSOR TREE ANTHRACITE

A presence sensor is one of the most important sensors in any type of automation project. With reliable detection of presence and motion, it forms the basis for the automation of important functions such as lighting (including maintaining constant light levels), burglar alarm, music, heating, ventilation or cooling, and much more. This is how you can easily solve seemingly complex tasks:

A traditional motion sensor does not detect when a person is sitting e.g. at a desk or in front of the TV set and is not moving. Installation factors might also affect the effectiveness of a motion sensor, such as it being hindered when a door is ajar. This is why the Loxone Presence Sensor is developed – to reliably detect presence more in more installation environments. With built-in multi-sensor technology, you can reduce hardware costs in non-traditionally shaped rooms that would have required multiple motion sensors.



  • Detect movement and presence through infrared and acoustic sensors
  • High detection field with a detection angle of 360° horizontal and 110° vertical (giving you an 8m detection field at a ceiling height of 3m).
  • Integrated brightness sensor (measuring range 0 ... 83000lx)
  • Individually adjustable acoustic sensor threshold value for presence detection.
  • Individually adjustable acoustic sensor threshold value for the burglar alarm.
  • Simple limitation of the detection range using a sticker for the Fresnel lens
