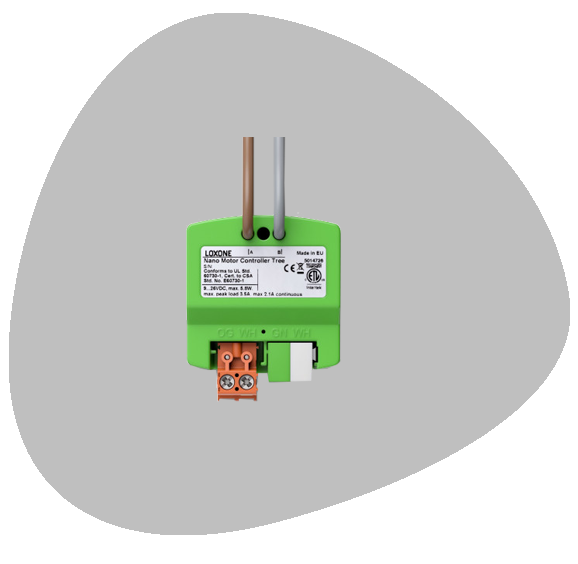

The Nano Motor Controller Tree is a compact flush-mounted module for DC loads, which are controlled via Loxone Tree technology. The configurable outputs can be used to control the speed of DC motors or dim LED lights. You can use the Nano Motor Controller Tree in three different operating modes: Bidirectional motor, unidirectional motor and PWM dimming. In addition, the module has current flow detection and overcurrent detection.
- Bidirectional Motor (1 Output, Polarity Reversal)
- Unidirectional Motor (2 Outputs)
- PWM Dimmer (1 Output)
- Bi- & Unidirectional: 2.1A continuous; 3.5A peak (<30s)
- Dimmer: 2.1A
- Bi- & Unidirectional: 1 … 10kHz
- PWM Dimmer: 400Hz
