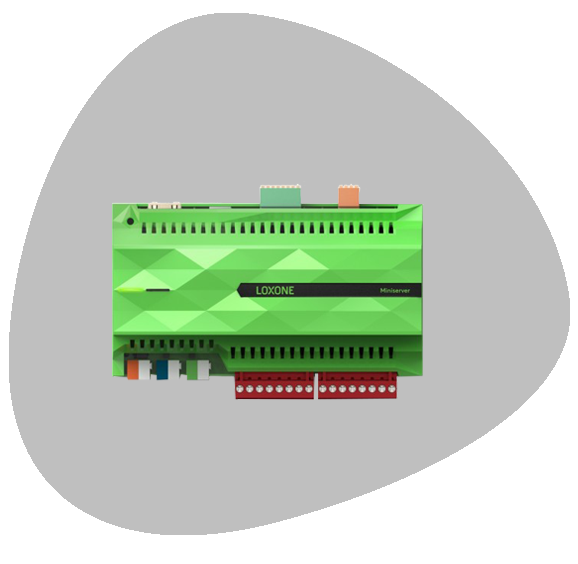

MINISERVER

The Loxone Miniserver is the main brain of a Loxone system acting as a central point of control for your home & building automation. It can look after everything from simple lighting to intelligent zoned heating control.

Up to 30 Extensions can be added to the Miniserver via the Loxone Link – offering an exceptional amount of flexibility and expandability. With this versatility, the Miniserver can meet the demands of building automation for single houses, developments, commercial buildings, customer applications, and more – making it a great all-rounder.









  • 8 Digital Outputs

    - max. 250VAC/10A cosφ=1

    - max. 30VDC/10A

  • 8 Digital Inputs 6VDC ... 24VDC
  • 4 Analogue Inputs 0-10V
  • Loxone Link interface (max. 30 Extensions)
  • Loxone Tree interface (max. 50 Tree devices) + Tree Intercommunication
  • LAN Connection (IPv4/IPv6, SSL, 100Mbps)
  • Power supply 19.2VDC ... 30VDC (PELV)
  • DIN rail mounting (9 TE)
