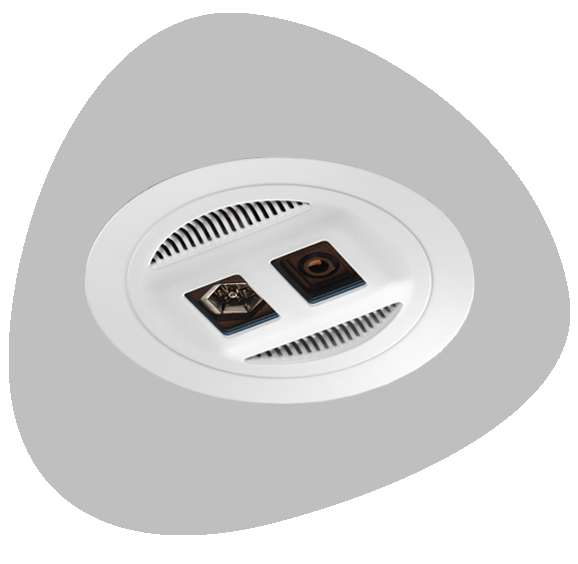

TAILGATE DETECTOR, TDFLEX™

PREVENTS UNAUTHORIZED ACCESS TO SECURE AREAS

IEE’s Tailgate Detector, TDflex™, is an anti-tailgating solution that ensures only authorized people enter a secure area by adding an additional security layer to your existing access control systems and allowing for:

  • Enhanced security
  • Security staff support and optimization
  • Configurable security alarms

  • Based on IEE’s 3D MLI Sensor™ technology, the Tailgate Detector, TDflex™ works with security systems by intercepting the signal emitted from the ID reader and determining the status of the access point (open/closed door). The sensor then establishes whether or not a single individual is attempting access and, in the event of dual or unauthorized access, provides the necessary output by refusing access or triggering an alert.

    Device

    TDflex96M4.0

    Mounting height

    2.5 to 3 m

    Maximum detection area at virtual gate

    2.8 m x 1.1 m to 3.8 m x 1.6 m

    Field of view/illumination

    90° x 60°

    Operational temperature range

    –20°C to +50°C

    Supply voltage

    24 V DC ± 15%

    Power consumption

    max. 1.0 A at 24 V DC

    Device

    TDflex64M4.0

    Mounting height

    3.0 to 5.0 m

    Maximum detection area at virtual gate

    2.6 m x 1.0 m to 4.6 m x 1.9 m

    Field of view/illumination

    60° x 40°

    Operational temperature range

    –20°C to +50°C

    Supply voltage

    24 V DC ± 15%

    Power consumption

    max. 1.0 A at 24 V DC
